ARC 1400 DICUT® DB
The current DT Swiss aero disc brake wheelset with a perfect synthesis of acceleration, aerodynamics and handling - even in the most challenging conditions.
- MSRP per set US$ from $ 2387
- Weight per set from 1371 g
- Brake interface Disc Brake
- from € 2049
- from CHF 2049
Product details
The sophisticated ARC 1400 DICUT wheels represent the latest DNA of the
1400 level of DT Swiss and our aero partner SWISS SIDE. Available in
disc brake version in four different rim heights (80 mm, 62 mm, 50 mm
and 38 mm), the AERO+ profile rims set a new standard in aerodynamic
performance and keep aero drag as low as possible under different
crosswind angles. In moderate side wind conditions, riders benefit from
propulsion through a sailing effect. Reduced wind sensitivity allows
riders to maintain a stable aerodynamic position and full control of
their bike. High-end DT Swiss aero spokes and the light 240 DICUT hub
with its reliable Ratchet EXP system for more direct engagement complete
this wheelsets.
ARC 1400 DICUT 80: The high profile aero wheelset is the perfect
choice to go #flatoutfast as never before.

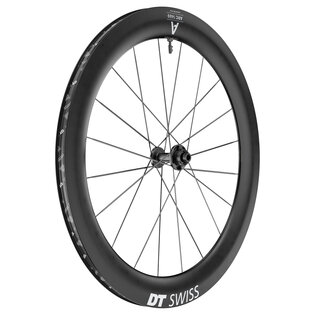

ARC 1400 DICUT 62: The all-round aero wheelset that provides an
excellent combination of stability and low drag when pushing down the
pedals in various terrains.

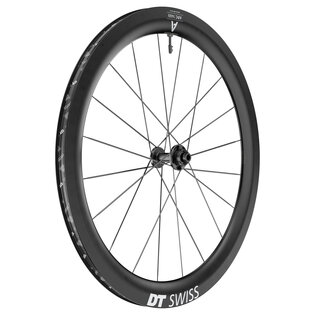

ARC 1400 DICUT 50: The low profile aero wheelset to keep the
power on your pedals on challenging and sharp courses which demand
superb handling.
ARC 1400 DICUT 38: The ideal climbing wheelset for blasting
through the iconic climbs on your bucket list.
ARC 1400 DICUT WTS: The ARC 1400 DICUT db wheels are now
available as an aero-optimized wheel tire system (WTS), mounted with the
new AERO 111 tire in 26 mm width in the front and a Continental GP 5000
STR in 28 mm width in the rear.
- Hub type 240 with Ratchet EXP 36
- Rim Carbon, Hooked / Crotchet tubeless TC
- Rim height 38 mm, 50 mm, 62 mm, 80 mm
- Spokes DT aero comp® II t-head, DT aero comp® t-head
Model finder
Just a few clicks to find your model. Please use the filter below.
There are 18 models of this product.
Show all
Hide all

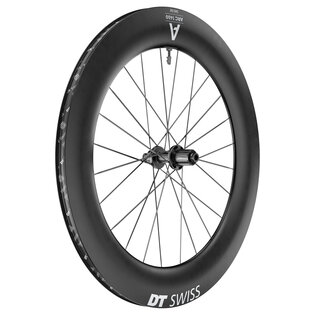

ARC 1400 DICUT db 80 12/142 mm Shimano
WARC140NIDICA12584- Net weight 973 g
- recommended System weight max. 110 kg
- ASTM classification 1
- Aproved for e-bikes -
- Inclusive Tires -
- Inclusive Tubes -
- Material Carbon
- Rim joint -
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 80 mm
- Inner Width 20 mm
- Outer width 32 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Brake Interface Disc Center Lock
- Cassette interface Shimano ROAD
-
Freehub body
Shim. RD. 11SP Light (ASL11)
(mounted) - Freehub system Ratchet EXP 36
- Spokes left DT aero comp® t-head
- Spokes right DT aero comp® t-head
- Spoke pattern Two-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 23 mm
TL valve alu black 66-80 mm
SRAM XDR Road freehub body kit
Valve guard

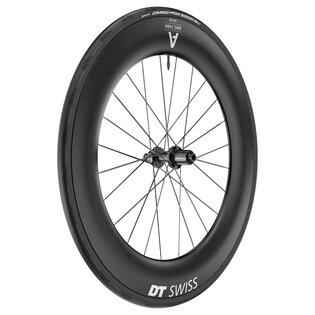

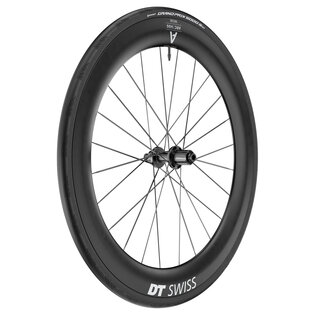

ARC 1400 DICUT db 80 12/142 mm Shimano WTS
WARC140NIDICA27064- Net weight 1293 g
- recommended System weight max. 110 kg
- ASTM classification 1
- Aproved for e-bikes -
- Inclusive Tires CONTINENTAL GP5000 STR 28-622
- Inclusive Tubes CONTINENTAL TPU TUBE SV
- Material Carbon
- Rim joint -
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 80 mm
- Inner Width 20 mm
- Outer width 32 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Brake Interface Disc Center Lock
- Cassette interface Shimano ROAD
-
Freehub body
Shim. RD. 11SP Light (ASL11)
(mounted) - Freehub system Ratchet EXP 36
- Spokes left DT aero comp® t-head
- Spokes right DT aero comp® t-head
- Spoke pattern Two-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 23 mm
TL valve alu black 66-80 mm
SRAM XDR Road freehub body kit
Valve guard
CONTINENTAL GP5000 STR 28-622
CONTINENTAL TPU TUBE SV

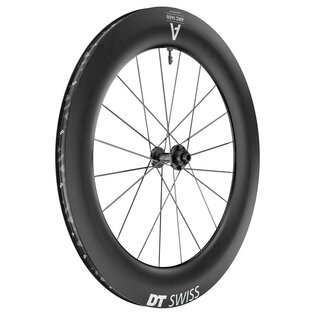

ARC 1400 DICUT db 80 12/100 mm
WARC140AIDXCA12583- Net weight 854 g
- recommended System weight max. 110 kg
- ASTM classification 1
- Aproved for e-bikes -
- Inclusive Tires -
- Inclusive Tubes -
- Material Carbon
- Rim joint -
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 80 mm
- Inner Width 20 mm
- Outer width 32 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 100 mm
- Brake Interface Disc Center Lock
- Cassette interface -
- Freehub body -
- Freehub system -
- Spokes left DT aero comp® t-head
- Spokes right DT aero comp® t-head
- Spoke pattern Two-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 23 mm
TL valve alu black 66-80 mm
Valve guard

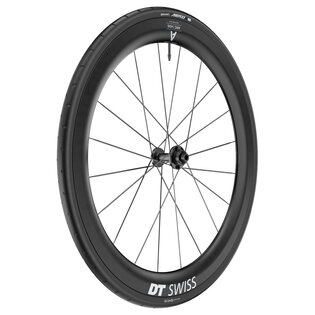

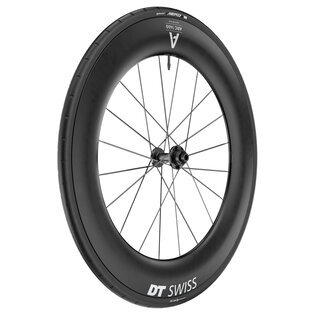

ARC 1400 DICUT db 80 12/100 mm WTS
WARC140AIDXCA27063- Net weight 1144 g
- recommended System weight max. 110 kg
- ASTM classification 1
- Aproved for e-bikes -
- Inclusive Tires CONTINENTAL AERO 111 26-622
- Inclusive Tubes CONTINENTAL TPU TUBE SV
- Material Carbon
- Rim joint -
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 80 mm
- Inner Width 20 mm
- Outer width 32 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 100 mm
- Brake Interface Disc Center Lock
- Cassette interface -
- Freehub body -
- Freehub system -
- Spokes left DT aero comp® t-head
- Spokes right DT aero comp® t-head
- Spoke pattern Two-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 23 mm
TL valve alu black 66-80 mm
Valve guard
CONTINENTAL AERO 111 26-622
CONTINENTAL TPU TUBE SV

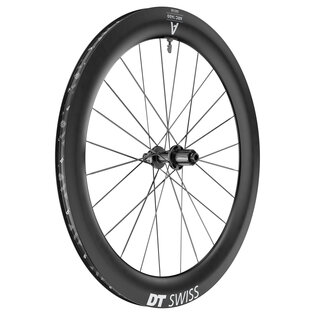

ARC 1400 DICUT db 62 12/142 mm Shimano
WARC140NIDICA12589- Net weight 931 g
- recommended System weight max. 110 kg
- ASTM classification 1
- Aproved for e-bikes -
- Inclusive Tires -
- Inclusive Tubes -
- Material Carbon
- Rim joint -
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 62 mm
- Inner Width 20 mm
- Outer width 27 mm
-

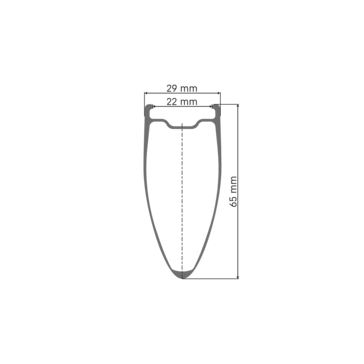

Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Brake Interface Disc Center Lock
- Cassette interface Shimano ROAD
-
Freehub body
Shim. RD. 11SP Light (ASL11)
(mounted) - Freehub system Ratchet EXP 36
- Spokes left DT aero comp® t-head
- Spokes right DT aero comp® t-head
- Spoke pattern Two-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 23 mm
TL valve alu black 49-65 mm
SRAM XDR Road freehub body kit
Valve guard

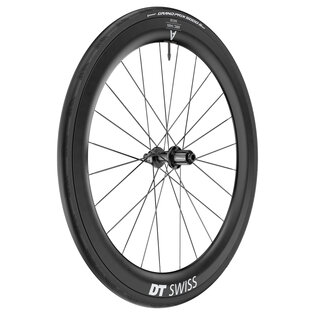

ARC 1400 DICUT db 62 12/142 mm Shimano WTS
WARC140NIDICA27069- Net weight 1251 g
- recommended System weight max. 110 kg
- ASTM classification 1
- Aproved for e-bikes -
- Inclusive Tires CONTINENTAL GP5000 STR 28-622
- Inclusive Tubes CONTINENTAL TPU TUBE SV
- Material Carbon
- Rim joint -
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 62 mm
- Inner Width 20 mm
- Outer width 27 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Brake Interface Disc Center Lock
- Cassette interface Shimano ROAD
-
Freehub body
Shim. RD. 11SP Light (ASL11)
(mounted) - Freehub system Ratchet EXP 36
- Spokes left DT aero comp® t-head
- Spokes right DT aero comp® t-head
- Spoke pattern Two-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 23 mm
TL valve alu black 49-65 mm
SRAM XDR Road freehub body kit
Valve guard
CONTINENTAL GP5000 STR 28-622
CONTINENTAL TPU TUBE SV
ARC 1400 DICUT db 62 12/100 mm
WARC140AIDXCA12588- Net weight 813 g
- recommended System weight max. 110 kg
- ASTM classification 1
- Aproved for e-bikes -
- Inclusive Tires -
- Inclusive Tubes -
- Material Carbon
- Rim joint -
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 62 mm
- Inner Width 20 mm
- Outer width 27 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 100 mm
- Brake Interface Disc Center Lock
- Cassette interface -
- Freehub body -
- Freehub system -
- Spokes left DT aero comp® t-head
- Spokes right DT aero comp® t-head
- Spoke pattern Two-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 23 mm
TL valve alu black 49-65 mm
Valve guard

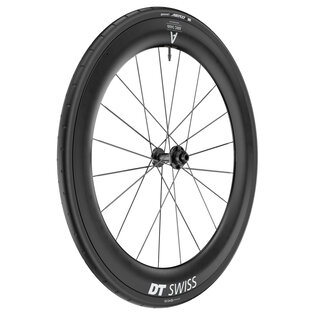

ARC 1400 DICUT db 62 12/100 mm WTS
WARC140AIDXCA27068- Net weight 1102 g
- recommended System weight max. 110 kg
- ASTM classification 1
- Aproved for e-bikes -
- Inclusive Tires CONTINENTAL AERO 111 26-622
- Inclusive Tubes CONTINENTAL TPU TUBE SV
- Material Carbon
- Rim joint -
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 62 mm
- Inner Width 20 mm
- Outer width 27 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 100 mm
- Brake Interface Disc Center Lock
- Cassette interface -
- Freehub body -
- Freehub system -
- Spokes left DT aero comp® t-head
- Spokes right DT aero comp® t-head
- Spoke pattern Two-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 23 mm
TL valve alu black 49-65 mm
Valve guard
CONTINENTAL AERO 111 26-622
CONTINENTAL TPU TUBE SV

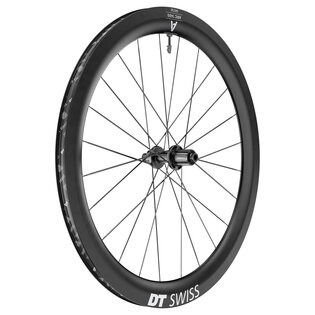

ARC 1400 DICUT db 50 12/142 mm Shimano
WARC140NIDICA12594- Net weight 836 g
- recommended System weight max. 110 kg
- ASTM classification 1
- Aproved for e-bikes -
- Inclusive Tires -
- Inclusive Tubes -
- Material Carbon
- Rim joint -
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 50 mm
- Inner Width 20 mm
- Outer width 27 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Brake Interface Disc Center Lock
- Cassette interface Shimano ROAD
-
Freehub body
Shim. RD. 11SP Light (ASL11)
(mounted) - Freehub system Ratchet EXP 36
- Spokes left DT aero comp® t-head
- Spokes right DT aero comp® t-head
- Spoke pattern Two-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 23 mm
TL valve alu black 49-65 mm
SRAM XDR Road freehub body kit
Valve guard
ARC 1400 DICUT 650b db 50 12/142 mm Shimano
WARC140NJDICA12599- Net weight 788 g
- recommended System weight max. 110 kg
- ASTM classification 1
- Aproved for e-bikes -
- Inclusive Tires -
- Inclusive Tubes -
- Material Carbon
- Rim joint -
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 27.5" / 650B
- Rim Height 50 mm
- Inner Width 20 mm
- Outer width 27 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Brake Interface Disc Center Lock
- Cassette interface Shimano ROAD
-
Freehub body
Shim. RD. 11SP Light (ASL11)
(mounted) - Freehub system Ratchet EXP 36
- Spokes left DT aero comp® t-head
- Spokes right DT aero comp® t-head
- Spoke pattern Two-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 23 mm
TL valve alu black 49-65 mm
SRAM XDR Road freehub body kit
Valve guard
ARC 1400 DICUT db 50 12/142 mm Shimano WTS
WARC140NIDICA27074- Net weight 1151 g
- recommended System weight max. 110 kg
- ASTM classification 1
- Aproved for e-bikes -
- Inclusive Tires CONTINENTAL GP5000 STR 28-622
- Inclusive Tubes CONTINENTAL TPU TUBE SV
- Material Carbon
- Rim joint -
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 50 mm
- Inner Width 20 mm
- Outer width 27 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Brake Interface Disc Center Lock
- Cassette interface Shimano ROAD
-
Freehub body
Shim. RD. 11SP Light (ASL11)
(mounted) - Freehub system Ratchet EXP 36
- Spokes left DT aero comp® t-head
- Spokes right DT aero comp® t-head
- Spoke pattern Two-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 23 mm
TL valve alu black 49-65 mm
SRAM XDR Road freehub body kit
Valve guard
CONTINENTAL GP5000 STR 28-622
CONTINENTAL TPU TUBE SV
ARC 1400 DICUT db 50 12/100 mm
WARC140AIDXCA12593- Net weight 716 g
- recommended System weight max. 110 kg
- ASTM classification 1
- Aproved for e-bikes -
- Inclusive Tires -
- Inclusive Tubes -
- Material Carbon
- Rim joint -
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 50 mm
- Inner Width 20 mm
- Outer width 27 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 100 mm
- Brake Interface Disc Center Lock
- Cassette interface -
- Freehub body -
- Freehub system -
- Spokes left DT aero comp® t-head
- Spokes right DT aero comp® t-head
- Spoke pattern Two-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 23 mm
TL valve alu black 49-65 mm
Valve guard
ARC 1400 DICUT 650b db 50 12/100 mm
WARC140AJDXCA12598- Net weight 670 g
- recommended System weight max. 110 kg
- ASTM classification 1
- Aproved for e-bikes -
- Inclusive Tires -
- Inclusive Tubes -
- Material Carbon
- Rim joint -
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 27.5" / 650B
- Rim Height 50 mm
- Inner Width 20 mm
- Outer width 27 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 100 mm
- Brake Interface Disc Center Lock
- Cassette interface -
- Freehub body -
- Freehub system -
- Spokes left DT aero comp® t-head
- Spokes right DT aero comp® t-head
- Spoke pattern Two-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 23 mm
TL valve alu black 49-65 mm
Valve guard
ARC 1400 DICUT db 50 12/100 mm WTS
WARC140AIDXCA27073- Net weight 1001 g
- recommended System weight max. 110 kg
- ASTM classification 1
- Aproved for e-bikes -
- Inclusive Tires CONTINENTAL AERO 111 26-622
- Inclusive Tubes CONTINENTAL TPU TUBE SV
- Material Carbon
- Rim joint -
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 50 mm
- Inner Width 20 mm
- Outer width 27 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 100 mm
- Brake Interface Disc Center Lock
- Cassette interface -
- Freehub body -
- Freehub system -
- Spokes left DT aero comp® t-head
- Spokes right DT aero comp® t-head
- Spoke pattern Two-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 23 mm
TL valve alu black 49-65 mm
Valve guard
CONTINENTAL AERO 111 26-622
CONTINENTAL TPU TUBE SV
ARC 1400 DICUT db 38 12/142 mm Shimano
WARC140NIDICA22337- Net weight 745 g
- recommended System weight max. 110 kg
- ASTM classification 1
- Aproved for e-bikes -
- Inclusive Tires -
- Inclusive Tubes -
- Material Carbon
- Rim joint -
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 38 mm
- Inner Width 20 mm
- Outer width 26 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Brake Interface Disc Center Lock
- Cassette interface Shimano ROAD
-
Freehub body
Shim. RD. 11SP Light (ASL11)
(mounted) - Freehub system Ratchet EXP 36
- Spokes left DT aero comp® II t-head
- Spokes right DT aero comp® II t-head
- Spoke pattern Two-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 23 mm
TL valve alu black 36-48 mm
SRAM XDR Road freehub body kit
Valve guard
ARC 1400 DICUT db 38 12/142 mm Shimano WTS
WARC140NIDICA27129- Net weight 1060 g
- recommended System weight max. 110 kg
- ASTM classification 1
- Aproved for e-bikes -
- Inclusive Tires CONTINENTAL GP5000 STR 28-622
- Inclusive Tubes CONTINENTAL TPU TUBE SV
- Material Carbon
- Rim joint -
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 38 mm
- Inner Width 20 mm
- Outer width 26 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Brake Interface Disc Center Lock
- Cassette interface Shimano ROAD
-
Freehub body
Shim. RD. 11SP Light (ASL11)
(mounted) - Freehub system Ratchet EXP 36
- Spokes left DT aero comp® II t-head
- Spokes right DT aero comp® II t-head
- Spoke pattern Two-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 23 mm
TL valve alu black 36-48 mm
SRAM XDR Road freehub body kit
Valve guard
CONTINENTAL GP5000 STR 28-622
CONTINENTAL TPU TUBE SV
ARC 1400 DICUT db 38 12/100 mm
WARC140AIDXCA22336- Net weight 626 g
- recommended System weight max. 110 kg
- ASTM classification 1
- Aproved for e-bikes -
- Inclusive Tires -
- Inclusive Tubes -
- Material Carbon
- Rim joint -
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 38 mm
- Inner Width 20 mm
- Outer width 26 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 100 mm
- Brake Interface Disc Center Lock
- Cassette interface -
- Freehub body -
- Freehub system -
- Spokes left DT aero comp® II t-head
- Spokes right DT aero comp® II t-head
- Spoke pattern Two-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 23 mm
TL valve alu black 36-48 mm
Valve guard
ARC 1400 DICUT db 38 12/100 mm WTS
WARC140AIDXCA27128- Net weight 911 g
- recommended System weight max. 110 kg
- ASTM classification 1
- Aproved for e-bikes -
- Inclusive Tires CONTINENTAL AERO 111 26-622
- Inclusive Tubes CONTINENTAL TPU TUBE SV
- Material Carbon
- Rim joint -
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 38 mm
- Inner Width 20 mm
- Outer width 26 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 100 mm
- Brake Interface Disc Center Lock
- Cassette interface -
- Freehub body -
- Freehub system -
- Spokes left DT aero comp® II t-head
- Spokes right DT aero comp® II t-head
- Spoke pattern Two-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 23 mm
TL valve alu black 36-48 mm
Valve guard
CONTINENTAL AERO 111 26-622
CONTINENTAL TPU TUBE SV
-
Looking for conversion options, spare parts, manuals or how-to videos? Visit our product support.
-
Find help and answers for frequently asked questions here.
-
Extended guarantee conditions for Carbon Wheels
According to your selection ARC 1400 DICUT® DB we found 18 models. Please use the model finder above to narrow down the models.
Select the model for which you need product support.
Find help and answers for frequently asked questions here.
-
At temperatures of 200 degrees, carbon will start to wave and lose its stability.
The exhaust gases from a car can be up to 500 degrees Celsius. When transporting your carbon wheel with a rear carrier, make sure that there is sufficient distance to avoid such defects!
Contact the manufacturer of your rear carrier for a protective device.
If you discover this deformation on your wheel, contact our Service Centre.
-
DT Swiss sells its products exclusively via official dealers, some of which also have online shops. Please contact your dealer. Or contact the distributor for your country – please use the contact form and select your country first, followed by "Product availability" as the subject.
-
Unfortunately we don't offer discounts; we don't sell directly to private customers. Please contact a dealer. You can find recommended retail prices on our website.
-
Compare the products on our website, where you can find our entire range and all technical specifications. Use the Wheel Finder to find the right wheel in just a few clicks.
Alternatively, contact a dealer – they know all about DT Swiss products and technologies and can advise you.
-
Use our Wheel Finder to find the right wheel for your bike and requirements in only a few steps. If you have any further questions or would like advice, please contact a dealer. They'll be happy to help you.
By buying a DT Swiss carbon wheel, you will benefit from the Fair Share Policy which allows you to profit from a crash replacement service for your wheels, available for 10 years after purchase.
AERO 111: A Perfected Storm
joscelin lowden
uno-x women's team
