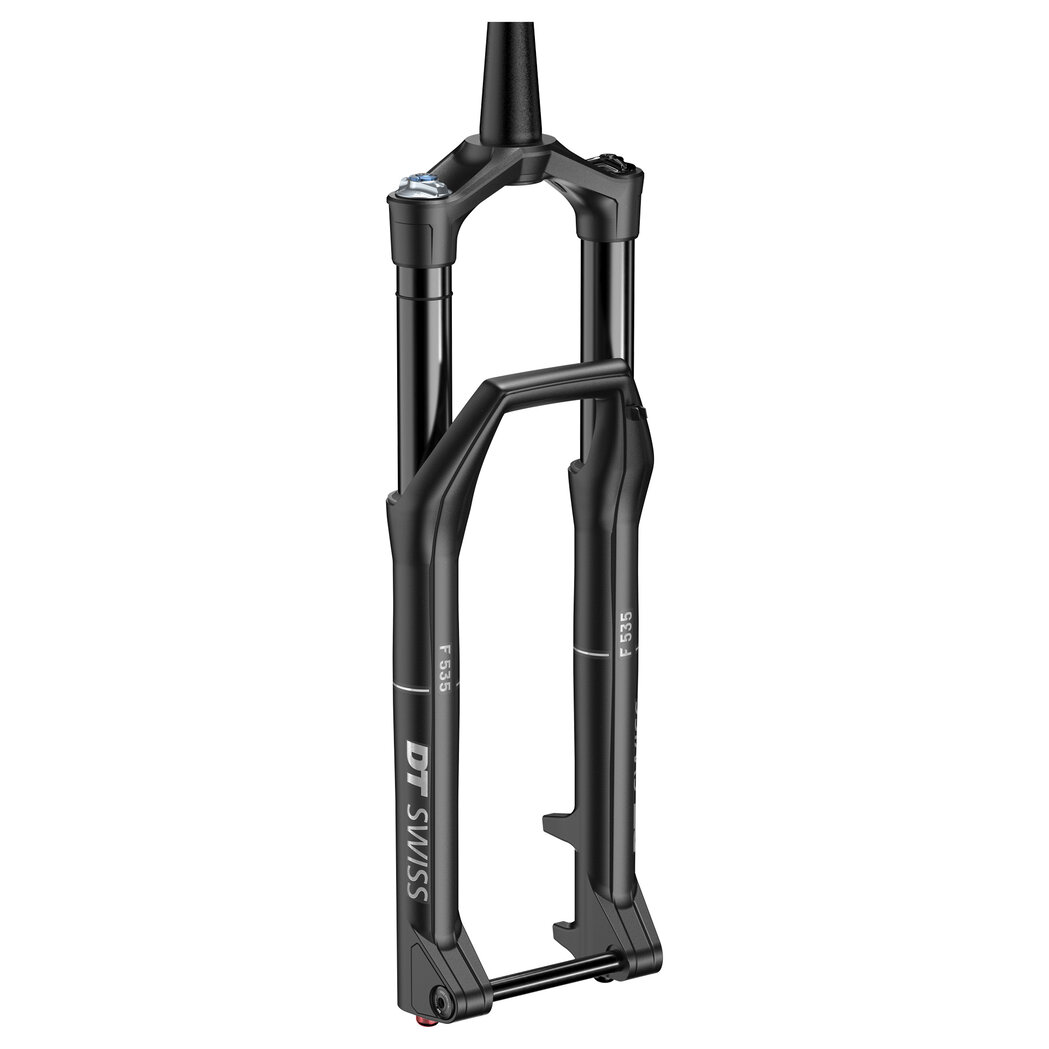

F 535
Find the flow during your all mountain ride.
- MSRP US$ from $ 939
- Net weight from 2090 g
- from € 939
- from CHF 939
Product details
The F 535 has been reimagined to focus on the essentials: finding the flow during your All-Mountain ride. Equipped with a lever at hand, the fork can be locked to get to the most remote trails with ease. Once at the top, flip the lever, opening the portal to flow.
Model finder
Just a few clicks to find your model. Please use the filter below.
F 535 120 mm 29" 44 mm offset lever
F535XEHLOFAS46426S- Net weight 2090 g
- Max. System weight 130 kg
- Max. System weight e-bike 150 kg
- ASTM classification 4
- ASTM classification e-bike 3
- Rim Diameter 29" / 700C
- Travel [H] 120 mm
- Spring technology LINEAIR / APT
- Damping technology INCONTROL O.L.
- Remote Lever
- Stanchion diameter 35 mm
- Installation length [A] 531 mm
- Offset [B] 44 mm
- Max. Tire width mm (E) 75 mm
- Tire diameter max. (C) 760 mm
- Max.Ø (D) at tire width (E) 730 mm
- Brake caliper mounting type[F] Post mount 7"
- Steerer diameter [G] Tapered 1.5 - 1 ⅛ "
- Axle system 15 mm Thru Axle
- Built-in dimension 110 mm Boost
- Fork slider material Magnesium
- Steerer material Aluminum
-
Inclusive
Mini Fender
APT Kit (2 Volume spacers)
2 Brake hose clamps
Star nut set black
RWS Plug In Lever & Rod
F 535 130 mm 29" 44 mm offset lever
F535XFHLOFAS46439S- Net weight 2090 g
- Max. System weight 130 kg
- Max. System weight e-bike 150 kg
- ASTM classification 4
- ASTM classification e-bike 3
- Rim Diameter 29" / 700C
- Travel [H] 130 mm
- Spring technology LINEAIR / APT
- Damping technology INCONTROL O.L.
- Remote Lever
- Stanchion diameter 35 mm
- Installation length [A] 541 mm
- Offset [B] 44 mm
- Max. Tire width mm (E) 75 mm
- Tire diameter max. (C) 760 mm
- Max.Ø (D) at tire width (E) 730 mm
- Brake caliper mounting type[F] Post mount 7"
- Steerer diameter [G] Tapered 1.5 - 1 ⅛ "
- Axle system 15 mm Thru Axle
- Built-in dimension 110 mm Boost
- Fork slider material Magnesium
- Steerer material Aluminum
-
Inclusive
Mini Fender
APT Kit (2 Volume spacers)
2 Brake hose clamps
Star nut set black
RWS Plug In Lever & Rod
F 535 140 mm 29" 44 mm offset lever
F535XGHLOFAS46442S- Net weight 2090 g
- Max. System weight 130 kg
- Max. System weight e-bike 150 kg
- ASTM classification 4
- ASTM classification e-bike 3
- Rim Diameter 29" / 700C
- Travel [H] 140 mm
- Spring technology LINEAIR / APT
- Damping technology INCONTROL O.L.
- Remote Lever
- Stanchion diameter 35 mm
- Installation length [A] 551 mm
- Offset [B] 44 mm
- Max. Tire width mm (E) 75 mm
- Tire diameter max. (C) 760 mm
- Max.Ø (D) at tire width (E) 730 mm
- Brake caliper mounting type[F] Post mount 7"
- Steerer diameter [G] Tapered 1.5 - 1 ⅛ "
- Axle system 15 mm Thru Axle
- Built-in dimension 110 mm Boost
- Fork slider material Magnesium
- Steerer material Aluminum
-
Inclusive
Mini Fender
APT Kit (2 Volume spacers)
2 Brake hose clamps
Star nut set black
RWS Plug In Lever & Rod
F 535 150 mm 29" 44 mm offset lever
F535XHHLOFAS46450S- Net weight 2090 g
- Max. System weight 130 kg
- Max. System weight e-bike 150 kg
- ASTM classification 4
- ASTM classification e-bike 3
- Rim Diameter 29" / 700C
- Travel [H] 150 mm
- Spring technology LINEAIR / APT
- Damping technology INCONTROL O.L.
- Remote Lever
- Stanchion diameter 35 mm
- Installation length [A] 561 mm
- Offset [B] 44 mm
- Max. Tire width mm (E) 75 mm
- Tire diameter max. (C) 760 mm
- Max.Ø (D) at tire width (E) 730 mm
- Brake caliper mounting type[F] Post mount 7"
- Steerer diameter [G] Tapered 1.5 - 1 ⅛ "
- Axle system 15 mm Thru Axle
- Built-in dimension 110 mm Boost
- Fork slider material Magnesium
- Steerer material Aluminum
-
Inclusive
Mini Fender
APT Kit (2 Volume spacers)
2 Brake hose clamps
Star nut set black
RWS Plug In Lever & Rod
F 535 160 mm 29" 44 mm offset lever
F535XIHLOFAS46452S- Net weight 2090 g
- Max. System weight 130 kg
- Max. System weight e-bike 150 kg
- ASTM classification 4
- ASTM classification e-bike 3
- Rim Diameter 29" / 700C
- Travel [H] 160 mm
- Spring technology LINEAIR / APT
- Damping technology INCONTROL O.L.
- Remote Lever
- Stanchion diameter 35 mm
- Installation length [A] 571 mm
- Offset [B] 44 mm
- Max. Tire width mm (E) 75 mm
- Tire diameter max. (C) 760 mm
- Max.Ø (D) at tire width (E) 730 mm
- Brake caliper mounting type[F] Post mount 7"
- Steerer diameter [G] Tapered 1.5 - 1 ⅛ "
- Axle system 15 mm Thru Axle
- Built-in dimension 110 mm Boost
- Fork slider material Magnesium
- Steerer material Aluminum
-
Inclusive
Mini Fender
APT Kit (2 Volume spacers)
2 Brake hose clamps
Star nut set black
RWS Plug In Lever & Rod
-
Looking for conversion options, spare parts, manuals or how-to videos? Visit our product support.
-
Find help and answers for frequently asked questions here.
According to your selection F 535 we found 5 models. Please use the model finder above to narrow down the models.
Select the model for which you need product support.
Find help and answers for frequently asked questions here.
-
On our website you will find various How-to videos and technical manuals to help you perform a service or conversion. First find your product in the Product Support by using the DT Swiss ID or filter. Under "How-to Videos" and "Manuals" you will find helpful and relevant information for the maintenance of your product. Note the material number of the spare part and order from a dealer.
Important! DT Swiss is not liable for damages caused by improper product maintenance. Always use original spare parts and tools to avoid damaging the product. The warranty right expires if the operating instructions have not been observed.
-
Are you looking for the user manual, searching for compatible replacement parts, or do you want to know which components are installed in your product?
All this information is stored in our useful Product Support. By entering the 7-digit DT Swiss ID or scanning the corresponding QR code / dot code with your mobile camera, you can easily identify your product. Please note that the dot code can only be read with this specific scan reader.
Since 2020, all wheels and suspension products are equipped with the 7-digit DT Swiss ID. If your product does not have a DT Swiss ID, you can also identify it using the filter function or the material number. Here you can find everything about the exact positioning of the DT Swiss ID on our products.
-
We recommend choosing the offset recommended by the frame manufacturer. You can find a more detailed explanation on our offset technology page.
-
Our Suspension Setup Guide will help you find the right setting for your suspension fork or shocks. Our How To videos will take you through this step by step. If you have any further questions or would like advice, please contact a dealer. They can help you with your setup.
-
You can buy all spare parts, conversion kits, and tools from a dealer.
You can find the right spare part or conversion kit under Product Support. First go to Product Support and select your product using the DT Swiss ID or filter. Under "Spare Parts" you will find the exact details on all the components of your product. You will also find helpful How To videos and manuals. Make a note of the material number and order the spare part from your dealer.
For dealers: Order spare parts via our distributor or directly via our B2B online shop. Prices and availability are shown directly on the B2B online shop.
