ARC 1100 DICUT® DB

Take the lead of your next race with our fastest road racing wheels.

  • MSRP per set US$ from $ 2 911
  • Weight per set from 1299 g
  • Brake interface Disc Brake
  • from € 2 499
  • from CHF 2 499
Product details

Product details

Being a leader is not for the faint of heart. The third generation of ARC reaches a new peak of innovation, with wider inner rim width, now 22 mm, that ideally supports wider tires providing you with grip and comfort. You will be able to storm ahead with enhanced speed over a long period. Three different rim heights, 55, 65, 85 mm, with a unique v-shape allow for a wider inner width without compromising aerodynamics and weight. The ARC 1100 DICUT 38, with its 38 mm high rim remains the ultimate climbing wheelset combining light weight and aero-optimization for a swift rise to the top. The top-of-the-line 180 DICUT hub with Ratchet EXP System and SINC ceramic bearings, as well as DT aerolite II spokes are the final ingredients needed to cross the finish line first. Join our mission to improve, to keep striving, to get ahead. The lead is taken, not given.

  • Hub type 180 with Ratchet EXP 36, Ratchet EXP 54
  • Rim Carbon, Hooked / Crotchet tubeless TC
  • Rim height 38 mm, 55 mm, 65 mm, 85 mm
  • Spokes DT aerolite® II t-head, DT aero comp® II t-head

Models

The ARC 1100 DICUT wheels are available in different rim heights to suit different racing profiles. Learn more about their features by clicking below:

ARC 1100 DICUT 85

Take the lead of the most prestigious triathlon: when the fastest setup is needed to conquer the most competitive field at your next triathlon or time trial. Ideally suiting both 28/29 and 25/26 mm tires, mount the 26 mm AERO 111 for the best aero performance.

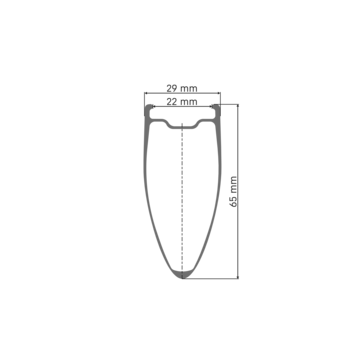

ARC 1100 DICUT 65

Take the lead of the sprint: their low aero dynamic drag is ideal for all out racing, cutting through the air with speed in the final meters of the sprint to take the win. They will shine on flat and fast roads.

ARC 1100 DICUT 55

Take the lead of the General Classification: these wheels provide good aerodynamic performance with easy handling. And thanks to their lower weight they are ready to conquer steep climbs on the way.

ARC 1100 DICUT 38

With a newly developed carbon layup and a rim height of 38 mm, this wheel not only claims the title of lightest wheel in our ARC line, but thanks to its careful aero optimization, also promises a swift rise to the top.

ARC 1100 DICUT WTS

The ARC 1100 DICUT db wheels come as an aero-optimized Wheel Tire System (WTS). For the 55 mm and 65 mm rim heights, they are equipped with the new AERO 111 front tire in a 29 mm width and a Continental GP 5000 STR rear tire in 30 mm. For the 38 mm and 85 mm rim options, the setup includes a 26 mm AERO 111 tire in the front and a 28 mm Continental GP 5000 STR in the rear.

tHE lEAD IS TAKEN
nOT GIVEN

ARC the third - wider, higher, lighter

Technologies

technology

We believe in the art of engineering and strive for sophistication in the product development process. Our guiding idea is to constantly push barriers with our inhouse developed technologies.

Wheel Tire System (WTs)
Technology

Learn more

Aero+
technology

Learn more

Ratchet exp
Technology

SINC Ceramic
Technology

read

Tubeless
Technology

Read
Models

Model finder

Just a few clicks to find your model. Please use the filter below.

01

Product variant

05

Axle system

06

Built-in dimension

07

Cassette interface

There are 20 models of this product.
Show all
Hide all
Zoom image
Rear Wheel

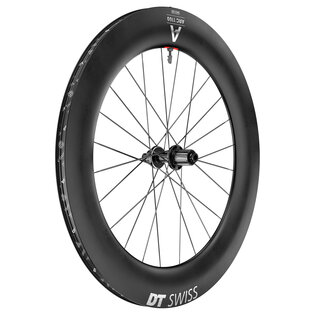

ARC 1100 DICUT db 85 12/142 mm Shimano

WARC110NIDJCA27361
General
  • Net weight 892 g
  • recommended System weight max. 110 kg
  • ASTM classification 1
  • Approved for e-bikes No
  • Inclusive Tires -
  • Inclusive Tubes -
Rim Hub Spokes & Nipples
  • Spokes left DT aerolite® II t-head
  • Spokes right DT aerolite® II t-head
  • Spoke pattern Two-cross (1:1)
  • Nipples DT Pro Lock hidden aluminum
Inclusive
  • Inclusive Tubeless tape 25 mm
    TL Vent alu black 81-85 mm
    SRAM XDR Road freehub body kit
    Valve guard
    Wheel bag
Zoom image
Rear Wheel

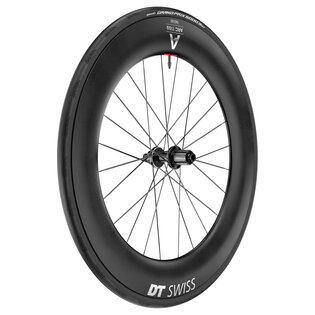

ARC 1100 DICUT db 85 12/142 mm Shimano WTS

WARC110NIDJCA27470

  • Net weight 1207 g
  • recommended System weight max. 110 kg
  • ASTM classification 1
  • Approved for e-bikes No
  • Inclusive Tires CONTINENTAL GP5000 STR 28-622
  • Inclusive Tubes CONTINENTAL TPU TUBE SV

  • Spokes left DT aerolite® II t-head
  • Spokes right DT aerolite® II t-head
  • Spoke pattern Two-cross (1:1)
  • Nipples DT Pro Lock hidden aluminum

  • Inclusive Tubeless tape 25 mm
    TL Vent alu black 81-85 mm
    SRAM XDR Road freehub body kit
    Valve guard
    Wheel bag
    CONTINENTAL GP5000 STR 28-622
    CONTINENTAL TPU TUBE SV
Zoom image
Front Wheel

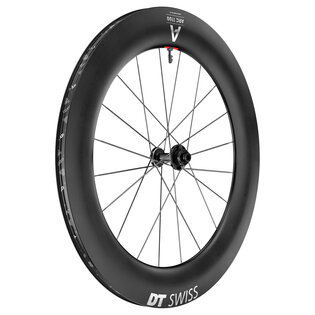

ARC 1100 DICUT db 85 12/100 mm

WARC110AIDXCA27360

  • Net weight 785 g
  • recommended System weight max. 110 kg
  • ASTM classification 1
  • Approved for e-bikes No
  • Inclusive Tires -
  • Inclusive Tubes -

  • Spokes left DT aerolite® II t-head
  • Spokes right DT aerolite® II t-head
  • Spoke pattern Two-cross (1:1)
  • Nipples DT Pro Lock hidden aluminum

  • Inclusive Tubeless tape 25 mm
    TL Vent alu black 81-85 mm
    Valve guard
    Wheel bag
Zoom image
Front Wheel

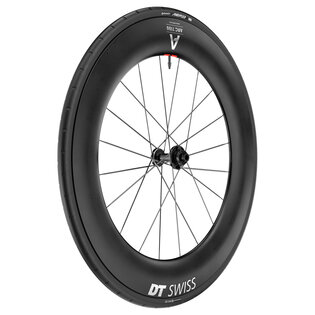

ARC 1100 DICUT db 85 12/100 mm WTS

WARC110AIDXCA27469

  • Net weight 1070 g
  • recommended System weight max. 110 kg
  • ASTM classification 1
  • Approved for e-bikes No
  • Inclusive Tires CONTINENTAL AERO 111 26-622
  • Inclusive Tubes CONTINENTAL TPU TUBE SV

  • Spokes left DT aerolite® II t-head
  • Spokes right DT aerolite® II t-head
  • Spoke pattern Two-cross (1:1)
  • Nipples DT Pro Lock hidden aluminum

  • Inclusive Tubeless tape 25 mm
    TL Vent alu black 81-85 mm
    Valve guard
    Wheel bag
    CONTINENTAL AERO 111 26-622
    CONTINENTAL TPU TUBE SV
Zoom image
Rear Wheel

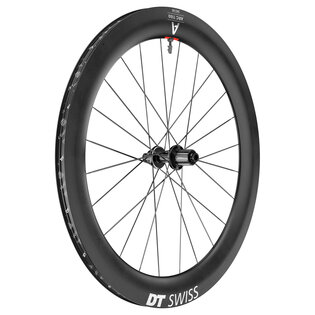

ARC 1100 DICUT db 65 12/142 mm Shimano

WARC110NIDJCA27374

  • Net weight 813 g
  • recommended System weight max. 110 kg
  • ASTM classification 1
  • Approved for e-bikes No
  • Inclusive Tires -
  • Inclusive Tubes -

  • Spokes left DT aerolite® II t-head
  • Spokes right DT aerolite® II t-head
  • Spoke pattern Two-cross (1:1)
  • Nipples DT Pro Lock hidden aluminum

  • Inclusive Tubeless tape 25 mm
    TL valve alu black 49-65 mm
    SRAM XDR Road freehub body kit
    Valve guard
    Wheel bag
Zoom image
Rear Wheel

ARC 1100 DICUT db 65 12/142 mm Shimano WTS

WARC110NIDJCA27475

  • Net weight 1138 g
  • recommended System weight max. 110 kg
  • ASTM classification 1
  • Approved for e-bikes No
  • Inclusive Tires CONTINENTAL GP5000 STR 30-622
  • Inclusive Tubes CONTINENTAL TPU TUBE SV

  • Spokes left DT aerolite® II t-head
  • Spokes right DT aerolite® II t-head
  • Spoke pattern Two-cross (1:1)
  • Nipples DT Pro Lock hidden aluminum

  • Inclusive Tubeless tape 25 mm
    TL valve alu black 49-65 mm
    SRAM XDR Road freehub body kit
    Valve guard
    Wheel bag
    CONTINENTAL GP5000 STR 30-622
    CONTINENTAL TPU TUBE SV
Zoom image
Front Wheel

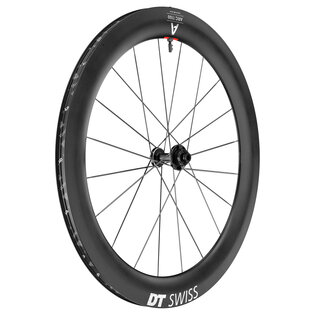

ARC 1100 DICUT db 65 12/100 mm

WARC110AIDXCA27373

  • Net weight 706 g
  • recommended System weight max. 110 kg
  • ASTM classification 1
  • Approved for e-bikes No
  • Inclusive Tires -
  • Inclusive Tubes -

  • Spokes left DT aerolite® II t-head
  • Spokes right DT aerolite® II t-head
  • Spoke pattern Two-cross (1:1)
  • Nipples DT Pro Lock hidden aluminum

  • Inclusive Tubeless tape 25 mm
    TL valve alu black 49-65 mm
    Valve guard
    Wheel bag
Zoom image
Front Wheel

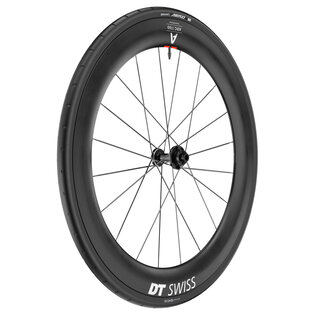

ARC 1100 DICUT db 65 12/100 mm WTS

WARC110AIDXCA27474

  • Net weight 1021 g
  • recommended System weight max. 110 kg
  • ASTM classification 1
  • Approved for e-bikes No
  • Inclusive Tires CONTINENTAL AERO 111 29-622
  • Inclusive Tubes CONTINENTAL TPU TUBE SV

  • Spokes left DT aerolite® II t-head
  • Spokes right DT aerolite® II t-head
  • Spoke pattern Two-cross (1:1)
  • Nipples DT Pro Lock hidden aluminum

  • Inclusive Tubeless tape 25 mm
    TL valve alu black 49-65 mm
    Valve guard
    Wheel bag
    CONTINENTAL AERO 111 29-622
    CONTINENTAL TPU TUBE SV
Zoom image
Rear Wheel

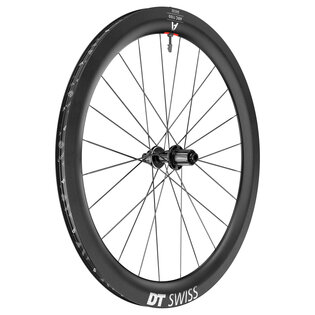

ARC 1100 DICUT db 55 12/142 mm Shimano

WARC110NIDJCA27379

  • Net weight 793 g
  • recommended System weight max. 110 kg
  • ASTM classification 1
  • Approved for e-bikes No
  • Inclusive Tires -
  • Inclusive Tubes -

  • Spokes left DT aerolite® II t-head
  • Spokes right DT aerolite® II t-head
  • Spoke pattern Two-cross (1:1)
  • Nipples DT Pro Lock hidden aluminum

  • Inclusive Tubeless tape 25 mm
    TL valve alu black 49-65 mm
    SRAM XDR Road freehub body kit
    Valve guard
    Wheel bag
Zoom image
Rear Wheel

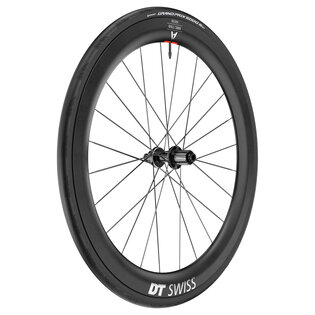

ARC 1100 DICUT db 55 12/142 mm Shimano WTS

WARC110NIDJCA27481

  • Net weight 1118 g
  • recommended System weight max. 110 kg
  • ASTM classification 1
  • Approved for e-bikes No
  • Inclusive Tires CONTINENTAL GP5000 STR 30-622
  • Inclusive Tubes CONTINENTAL TPU TUBE SV

  • Spokes left DT aerolite® II t-head
  • Spokes right DT aerolite® II t-head
  • Spoke pattern Two-cross (1:1)
  • Nipples DT Pro Lock hidden aluminum

  • Inclusive Tubeless tape 25 mm
    TL valve alu black 49-65 mm
    SRAM XDR Road freehub body kit
    Valve guard
    Wheel bag
    CONTINENTAL GP5000 STR 30-622
    CONTINENTAL TPU TUBE SV
Zoom image
Rear Wheel

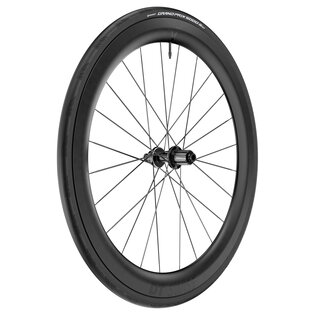

ARC 1100 DICUT db 55 12/142 mm Shimano WTS black

WARC11ANIDJCA29681

  • Net weight 1118 g
  • recommended System weight max. 110 kg
  • ASTM classification 1
  • Approved for e-bikes No
  • Inclusive Tires CONTINENTAL GP5000 STR 30-622
  • Inclusive Tubes CONTINENTAL TPU TUBE SV

  • Spokes left DT aerolite® II t-head
  • Spokes right DT aerolite® II t-head
  • Spoke pattern Two-cross (1:1)
  • Nipples DT Pro Lock hidden aluminum

  • Inclusive Tubeless tape 25 mm
    TL valve alu black 49-65 mm
    SRAM XDR Road freehub body kit
    Valve guard
    Wheel bag
    CONTINENTAL GP5000 STR 30-622
    CONTINENTAL TPU TUBE SV
Zoom image
Front Wheel

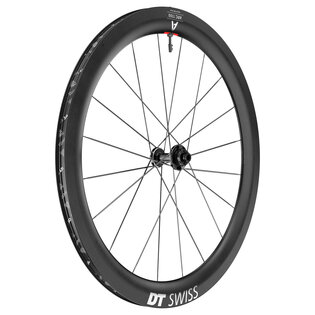

ARC 1100 DICUT db 55 12/100 mm

WARC110AIDXCA27378

  • Net weight 686 g
  • recommended System weight max. 110 kg
  • ASTM classification 1
  • Approved for e-bikes No
  • Inclusive Tires -
  • Inclusive Tubes -

  • Spokes left DT aerolite® II t-head
  • Spokes right DT aerolite® II t-head
  • Spoke pattern Two-cross (1:1)
  • Nipples DT Pro Lock hidden aluminum

  • Inclusive Tubeless tape 25 mm
    TL valve alu black 49-65 mm
    Valve guard
    Wheel bag
Zoom image
Front Wheel

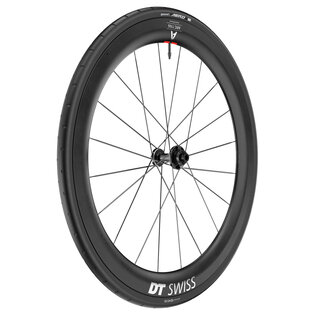

ARC 1100 DICUT db 55 12/100 mm WTS

WARC110AIDXCA27480

  • Net weight 1001 g
  • recommended System weight max. 110 kg
  • ASTM classification 1
  • Approved for e-bikes No
  • Inclusive Tires CONTINENTAL AERO 111 29-622
  • Inclusive Tubes CONTINENTAL TPU TUBE SV

  • Spokes left DT aerolite® II t-head
  • Spokes right DT aerolite® II t-head
  • Spoke pattern Two-cross (1:1)
  • Nipples DT Pro Lock hidden aluminum

  • Inclusive Tubeless tape 25 mm
    TL valve alu black 49-65 mm
    Valve guard
    Wheel bag
    CONTINENTAL AERO 111 29-622
    CONTINENTAL TPU TUBE SV
Zoom image
Front Wheel

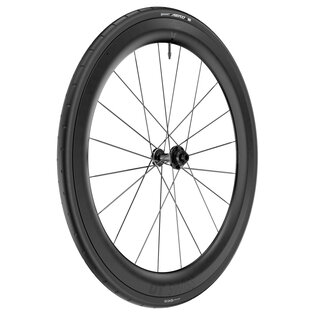

ARC 1100 DICUT db 55 12/100 mm WTS black

WARC11AAIDXCA29680

  • Net weight 1001 g
  • recommended System weight max. 110 kg
  • ASTM classification 1
  • Approved for e-bikes No
  • Inclusive Tires CONTINENTAL AERO 111 29-622
  • Inclusive Tubes CONTINENTAL TPU TUBE SV

  • Spokes left DT aerolite® II t-head
  • Spokes right DT aerolite® II t-head
  • Spoke pattern Two-cross (1:1)
  • Nipples DT Pro Lock hidden aluminum

  • Inclusive Tubeless tape 25 mm
    TL valve alu black 49-65 mm
    Valve guard
    Wheel bag
    CONTINENTAL AERO 111 29-622
    CONTINENTAL TPU TUBE SV
Zoom image
Rear Wheel

ARC 1100 DICUT db 38 12/142 mm Shimano

WARC110NIDJCA22334

  • Net weight 712 g
  • recommended System weight max. 110 kg
  • ASTM classification 1
  • Approved for e-bikes No
  • Inclusive Tires -
  • Inclusive Tubes -

  • Spokes left DT aerolite® II t-head
  • Spokes right DT aero comp® II t-head
  • Spoke pattern Two-cross (1:1)
  • Nipples DT Pro Lock hidden aluminum

  • Inclusive Tubeless tape 23 mm
    TL valve alu black 36-48 mm
    SRAM XDR Road freehub body kit
    Valve guard
    Wheel bag
Zoom image
Rear Wheel

ARC 1100 DICUT db 38 12/142 mm Shimano WTS

WARC110NIDJCA27124

  • Net weight 1027 g
  • recommended System weight max. 110 kg
  • ASTM classification 1
  • Approved for e-bikes No
  • Inclusive Tires CONTINENTAL GP5000 STR 28-622
  • Inclusive Tubes CONTINENTAL TPU TUBE SV

  • Spokes left DT aerolite® II t-head
  • Spokes right DT aero comp® II t-head
  • Spoke pattern Two-cross (1:1)
  • Nipples DT Pro Lock hidden aluminum

  • Inclusive Tubeless tape 23 mm
    TL valve alu black 36-48 mm
    SRAM XDR Road freehub body kit
    Valve guard
    Wheel bag
    CONTINENTAL GP5000 STR 28-622
    CONTINENTAL TPU TUBE SV
Zoom image
Rear Wheel

ARC 1100 DICUT THREE DECADES db 38 12/142 mm Shimano

WARC110NIDJCA23493

  • Net weight 711 g
  • recommended System weight max. 110 kg
  • ASTM classification 1
  • Approved for e-bikes No
  • Inclusive Tires -
  • Inclusive Tubes -

  • Spokes left DT aerolite® II t-head
  • Spokes right DT aero comp® II t-head
  • Spoke pattern Two-cross (1:1)
  • Nipples DT Pro Lock hidden aluminum

  • Inclusive Tubeless tape 23 mm
    TL valve alu black 36-48 mm
    SRAM XDR Road freehub body kit
    Valve guard
Zoom image
Front Wheel

ARC 1100 DICUT db 38 12/100 mm

WARC110AIDXCA22333

  • Net weight 587 g
  • recommended System weight max. 110 kg
  • ASTM classification 1
  • Approved for e-bikes No
  • Inclusive Tires -
  • Inclusive Tubes -

  • Spokes left DT aerolite® II t-head
  • Spokes right DT aerolite® II t-head
  • Spoke pattern Two-cross (1:1)
  • Nipples DT Pro Lock hidden aluminum

  • Inclusive Tubeless tape 23 mm
    TL valve alu black 36-48 mm
    Valve guard
    Wheel bag
Zoom image
Front Wheel

ARC 1100 DICUT db 38 12/100 mm WTS

WARC110AIDXCA27123

  • Net weight 872 g
  • recommended System weight max. 110 kg
  • ASTM classification 1
  • Approved for e-bikes No
  • Inclusive Tires CONTINENTAL AERO 111 26-622
  • Inclusive Tubes CONTINENTAL TPU TUBE SV

  • Spokes left DT aerolite® II t-head
  • Spokes right DT aerolite® II t-head
  • Spoke pattern Two-cross (1:1)
  • Nipples DT Pro Lock hidden aluminum

  • Inclusive Tubeless tape 23 mm
    TL valve alu black 36-48 mm
    Valve guard
    Wheel bag
    CONTINENTAL AERO 111 26-622
    CONTINENTAL TPU TUBE SV
Zoom image
Front Wheel

ARC 1100 DICUT THREE DECADES db 38 12/100 mm

WARC110AIDXCA23492

  • Net weight 586 g
  • recommended System weight max. 110 kg
  • ASTM classification 1
  • Approved for e-bikes No
  • Inclusive Tires -
  • Inclusive Tubes -

  • Spokes left DT aerolite® II t-head
  • Spokes right DT aerolite® II t-head
  • Spoke pattern Two-cross (1:1)
  • Nipples DT Pro Lock hidden aluminum

  • Inclusive Tubeless tape 23 mm
    TL valve alu black 36-48 mm
    Valve guard
    Wheel bag
Support
  • Looking for conversion options, spare parts, manuals or how-to videos? Visit our product support.

  • Find help and answers for frequently asked questions here.

  • Extended guarantee conditions for Carbon Wheels

Find help and answers for frequently asked questions here.

Experience

Youtube not allowed

Here you can find a video on Youtube. With one click you can agree to the use of marketing cookies and watch the video. I consent to external content being displayed. This means that personal data may be transmitted to third-party platforms. You can find more information about this in our privacy policy.

arc the third
The lead is taken not given

Play global.youtube.alt

MIE BJØRNDAL OTTESTAD
Uno-X Mobility Team rider

«In a race where seconds decide the podium, a setup that maximizes speed, stability and control is crucial. Riding DT Swiss ARC 1100 DICUT 50 wheels paired with AERO 111 tire, I feel fast. Their aerodynamic efficiency allows me to save energy in descents, as they roll incredibly well, helping me maintain speed with less effort. They played a decisive role in securing my first podium at the GC of the Tour Down Under.»

sam long

«DT Swiss wheels have changed my ride experience. I feel more freedom and speed of movement with the wheels underneath me than I ever have before. The wheels accelerate and allow me to surge at will. The stiffness is unmatched. Finally, the sound of the 180 hub makes me excited to get enough speed to freewheel!»



Photo Credit: Kenny Withrow

Daniela Ryf

«A perfect wheelset for an Ironman, especially for the Ironman in Kona, must be both fast and stable. Stability is just as important: if you can't handle the crosswind, you won't be fast.»

Anne Haug

«An ideal wheelset for an Ironman must be aerodynamic and fast. Since the wheel is more controllable and stable in crosswinds, I can now ride a higher rim height, which I used to struggle with.»

cyclingweekly.com

BY Andy Turner

«The DT Swiss ARC 1100 DICUT 38 DB wheelset is a really fun set of wheels to use. The low weight combined with the brilliant stiffness makes them super responsive to every bit of pressure that you put through the pedals. Add to that great handling, stability, and a fast wheelset that is decent when compared to deeper competitors and it really is a great overall package.»

by Philipp Schwab

«The new DT Swiss wheels are a lot of fun and revealed no weaknesses during the course of our test. Whether accelerating out of a corner or from a standstill, in an aerodynamic position on flat terrain or with crosswinds, the new ARC 1100 wheels excel in every situation and should help you set new record times!»

by stu kerton

«The ARC 1100 DBs are at the expensive end of the market, but if you want speed and a weight low enough you can use them on all terrains, they're hard to ignore. The overall build quality is top notch too.»
