MSRP per set
from €
749
from CHF
727
from $
1 142
from YEN
115 354
from NT$
25 855
Weight per set
from
1825
g
Product details

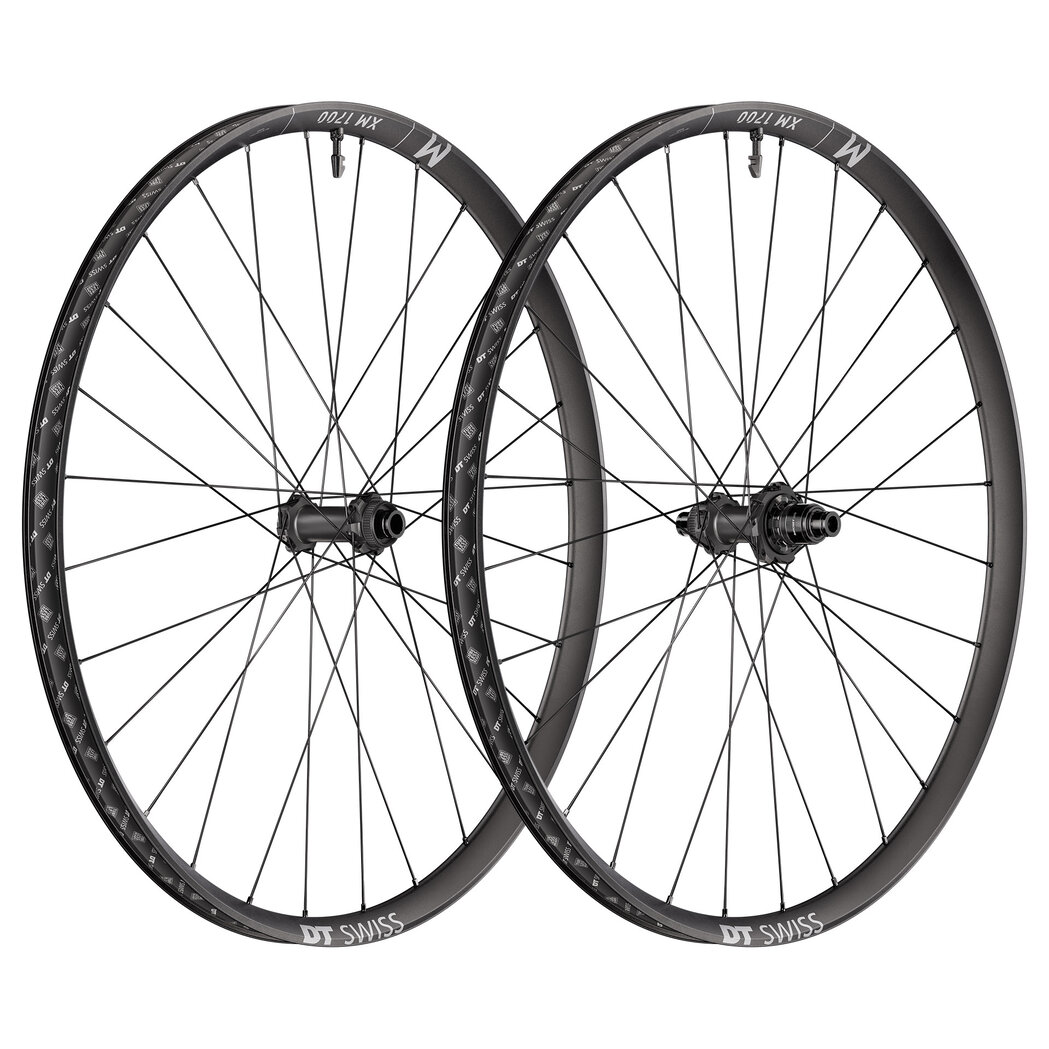

When you just want the fun of exploring the mountains, don’t search
further, the XM 1700 SPLINE is ready to conquer the roughest terrain
without any fuss. Its fast-engaging 350 DEG DF hub with 72 teeth
delivers 5° of engagement – no fuss, just the right hub to tackle
technical uphill sections where the bike's reactivity is as important as
yours. And when you need it, it gives you 10 or 20 degrees of freedom to
tackle pedal kickback. Built with DT competition race spokes, asymmetric
rims - light at the front and more resistant at the back - this aluminum
wheelset has all the versatility you need for all the mountains out
there.
Hub type
350
with
Ratchet DEG 72
Rim
Aluminum, Hooked / Crotchet tubeless TC
Inner width
30 mm
Spokes
DT competition® race straightp
Rim
The welded aluminum rims are asymetrical, making the wheels more stable as it allows for more equal spoke tension. Specific front and rear rims ideally cope with modern trail riding, and wider rim horns improve the pinchflat resistance, All in all making it a more durable wheelset.
spokes
The DT competition race spokes and their extra thin middle section saves weight for an almost equal stiffness and durability.
hub
The 350 DEG hub with its 72 points of engagement will reliably support you as you tackle technical uphill sections.
Anti pedal-kickback technology
The DF technology adds a radically simplified anti-pedal kickback system. The tool-free adjustment (0, 10, or 20 degrees of freedom) ensures that you can find the right setup for your riding style, guaranteeing fun for all.
all fun, no fuss
1700 MTB wheels: all the components for thrilling rides without any fuss.
technology
We believe in the art of engineering and strive for sophistication in the product development process. Our guiding idea is to constantly push barriers with our inhouse developed technologies.
The best aluminium all mountain wheels. Period. That is what we designed the XM 1700 SPLINE wheels to be. Whether this is actually the case is up to you to decide. But we have given it everything needed to dominate the mountain. Photo: @gaudenzdanuser
The XM 1700 SPLINE light and robust welded rims, perfect tubeless compatibility for grip and puncture resistance as well as our reliable hubs with RATCHET freehub and a 36 tooth engagement. Equipped with the XM 1700 SPLINE nothing can stop you from your personal all mountain adventure. Photo: @gaudenzdanuser
Nestled in the magnificent mountain world, the 330-kilometre network of routes of the Flims Laax Falera region delivered the perfect testing ground for our new XM 1700 SPLINE. Photo: @gaudenzdanuser
Inclusive
Tubeless tape 32 mm
TL valve Asy Alu black18-25 mm
IS 6-bolt adapter MTB
Product support
According to your selection XM 1700 SPLINE® we found 6 models. Please use the model finder above to narrow down the models. Select the model for which you need product support.
The current DT Swiss wheels are tubeless-ready and come with mounted tubeless rim tape and corresponding valves. For conversion, you will need a tubeless-capable tire (optimal: UST) and tire sealant. You can find both at an official dealer. Our How To video will take you through step-by-step assembly.
If you have previously ridden your bike with a tube or if the tape no longer sticks properly to the rim, we recommend that you replace the rim tape as a precaution.
How to attach the tubeless rim tape:
1. Measure the inside width of the rim.
2. The tubeless rim tape should be approx. 2 mm wider than the rim and can be bought from a specialist store.
3. Apply the tubeless rim tape. Depending on the rim/tire combination, it may be helpful to apply two or three layers of tubeless rim tape to optimally seal the rim bed.
Play
Youtube not allowed
Here you can find a video on Youtube. With one click you can agree to the use of marketing cookies and watch the video. I consent to external content being displayed. This means that personal data may be transmitted to third-party platforms. You can find more information about this in our privacy policy.
Are you looking for the user manual, searching for compatible replacement parts, or do you want to know which components are installed in your product?
All this information is stored in our useful Product Support. By entering the 7-digit DT Swiss ID or scanning the corresponding QR code / dot code with your mobile camera, you can easily identify your product. Please note that the dot code can only be read with this specific scan reader.
Since 2020, all wheels and suspension products are equipped with the 7-digit DT Swiss ID. If your product does not have a DT Swiss ID, you can also identify it using the filter function or the material number. Here you can find everything about the exact positioning of the DT Swiss ID on our products.
Under Product Support, you will find exact details of all conversion options for your product (wheel, hub). First go to Product Support and select your product using the DT Swiss ID or filter. Under "Conversion" you will find the exact details for all conversion options. You will also find helpful How To videos and manuals.
The tire should be pumped in line with the manufacturer's instructions, in order to ensure optimum rolling resistance.
Note: This can vary depending on the tire manufacturer and model. The tire pressure impacts both the ride comfortability and stability of the wheel. See our tire pressure table for an overview of maximum tire pressures depending on tire and rim width.
You can buy all spare parts, conversion kits, and tools from a dealer.
You can find the right spare part or conversion kit under Product Support. First go to Product Support and select your product using the DT Swiss ID or filter. Under "Spare Parts" you will find the exact details on all the components of your product. You will also find helpful How To videos and manuals. Make a note of the material number and order the spare part from your dealer.
For dealers: Order spare parts via our distributor or directly via our B2B online shop. Prices and availability are shown directly on the B2B online shop.
